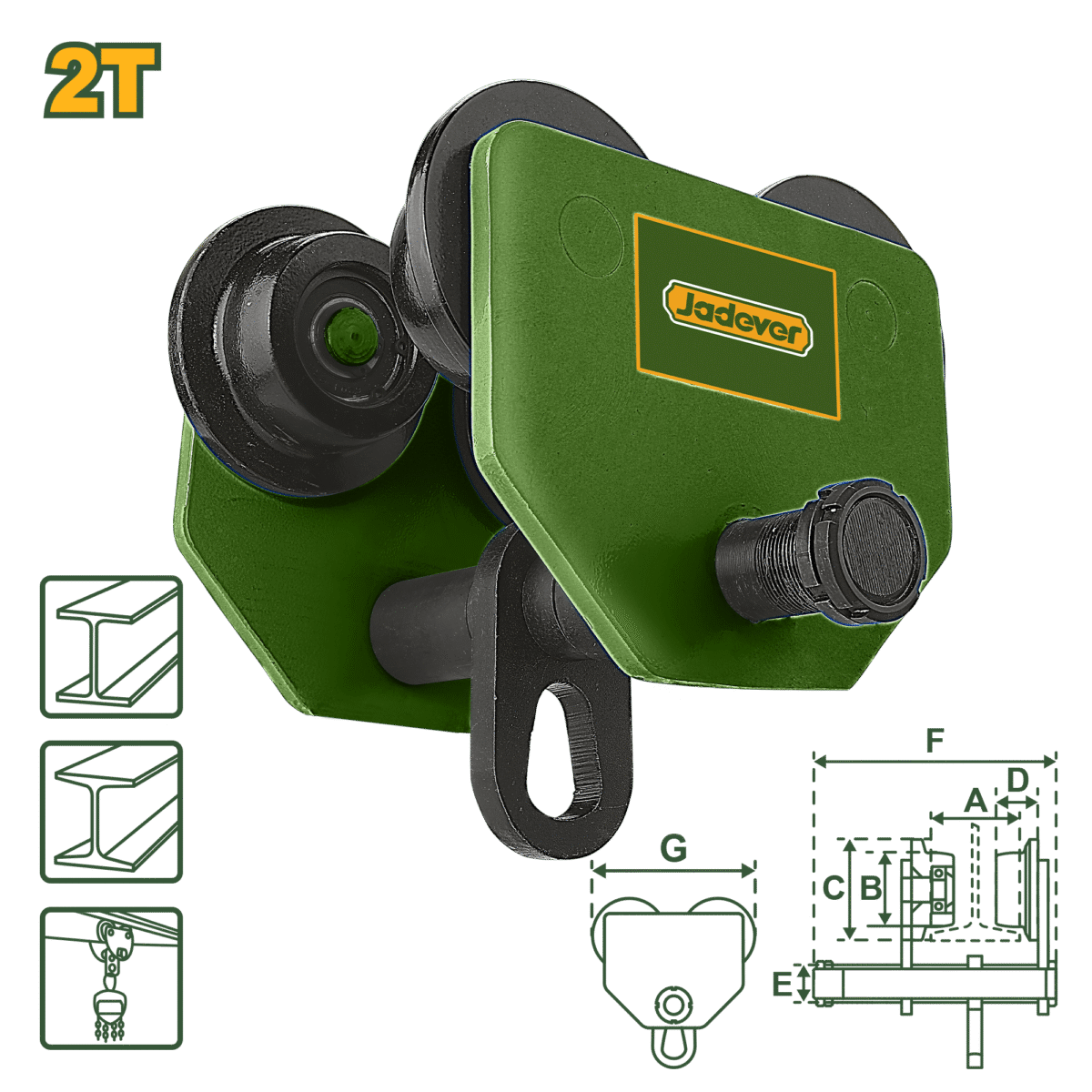

JADEVER Hand Push Manual Trolley – 2 Ton Capacity | Adjustable Beam Width 94–124mm (JDCK4520)

This 2-ton hand push manual trolley is designed for smooth and safe horizontal movement of loads on I-beams. Its robust steel construction and adjustable beam width make it ideal for warehouses, workshops, and industrial applications. The trolley runs on high-quality wheels that ensure minimal resistance and high load capacity.

• Capacity: 2 Ton

• Adjustable beam width (A): 94–124 mm

• Minimum curve radius: 1 m

• Internal wheel diameter (B): 75 mm

• Wheel size (C × D): 102 × 40 mm

• Bolt diameter (E): 30 mm

• Bolt length (F): 247 mm

• Overall width (G): 218 mm

• Net weight: 11.7 kg

• Packed by color box
